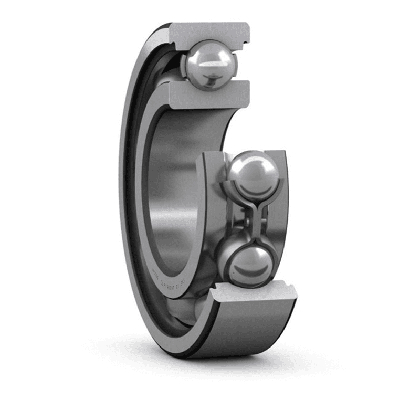

Technical specification
DIMENSIONS
| d |
30 mm
|
|
|---|---|---|
| D |
62 mm
|
|
| B |
16 mm
|
|
| d1 |
≈ 40.36 mm
|
|
| D2 |
≈ 54.06 mm
|
|
| r1,2 |
min. 1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 35.6 mm
|
|
|---|---|---|
| Da |
max. 56.4 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
20.3 kN
|
|---|---|---|
| Basic static load rating | C0 |
11.2 kN
|
| Fatigue load limit | Pu |
0.475 kN
|
| Reference speed |
24 000 r/min
|
|
| Limiting speed |
15 000 r/min
|
|
| Calculation factor | kr |
0.025
|
| Calculation factor | f0 |
14
|
MASS
| Mass bearing |
0.2 kg
|
|---|
