Technical specification
DIMENSIONS
| d |
25 mm
|
|
|---|---|---|
| D |
62 mm
|
|
| B |
17 mm
|
|
| d2 |
≈ 35.7 mm
|
|
| D1 |
≈ 50.7 mm
|
|
| r1,2 |
min. 1.1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 32 mm
|
|
|---|---|---|
| Da |
max. 55 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
49.1 kN
|
|---|---|---|
| Basic static load rating | C0 |
41.5 kN
|
| Fatigue load limit | Pu |
4.55 kN
|
| Reference speed |
9 300 r/min
|
|
| Limiting speed |
12 000 r/min
|
|
| Calculation factor | e |
0.3
|
| Calculation factor | Y1 |
2.3
|
| Calculation factor | Y2 |
3.4
|
| Calculation factor | Y0 |
2.2
|
MASS
| Mass bearing |
0.27 kg
|
|---|

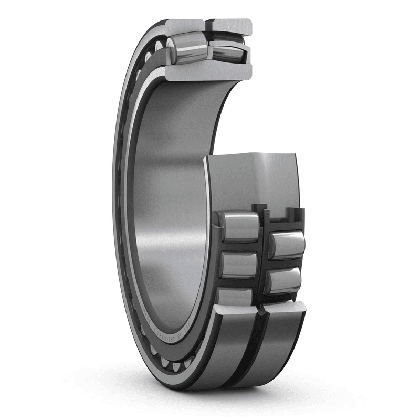

Meet the challenge with SKF spherical roller bearings, whose high load carrying capacity and ability to accommodate misalignment help you obtain low maintenance costs and long bearing service life. SKF invented this bearing type in 1919 and our range is the widest in the industry today – both open and sealed. Our assortment includes spherical roller bearings designed for many applications, including wind turbine main shafts, continuous casters, vibratory applications and high-speed applications, as well as bearings with Solid Oil, split bearings,
