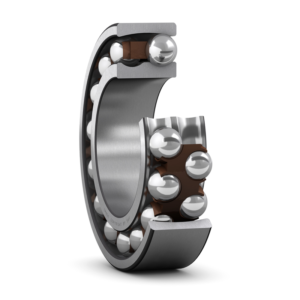

Technical specification
DIMENSIONS
| d |
25 mm
|
|
|---|---|---|
| D |
52 mm
|
|
| B |
15 mm
|
|
| d1 |
≈ 33.3 mm
|
|
| D1 |
≈ 44.6 mm
|
|
| r1,2 |
min. 1 mm
|
ABUTMENT DIMENSIONS
| da |
min. 30.6 mm
|
|
|---|---|---|
| Da |
max. 46.4 mm
|
|
| ra |
max. 1 mm
|
CALCULATION DATA
| Basic dynamic load rating | C |
14.3 kN
|
|---|---|---|
| Basic static load rating | C0 |
4 kN
|
| Fatigue load limit | Pu |
0.204 kN
|
| Reference speed |
28 000 r/min
|
|
| Limiting speed |
18 000 r/min
|
|
| Permissible angular misalignment | α |
2.5 °
|
| Calculation factor | kr |
0.04
|
| Calculation factor | e |
0.28
|
| Calculation factor | Y0 |
2.5
|
| Calculation factor | Y1 |
2.2
|
| Calculation factor | Y2 |
3.5
|
MASS
| Mass bearing |
0.14 kg
|
|---|
